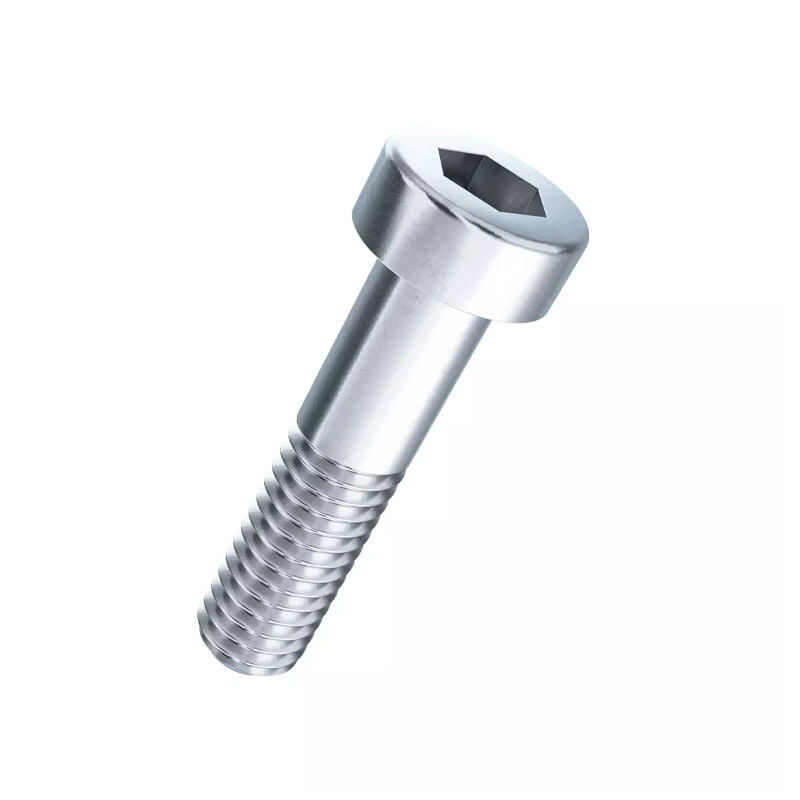

DIN7984
圆柱头
Hexagon socket
Fully threaded, 半螺纹
平端
产品信息
- 产品材质 Stainless steel, carbon steel
- 产品标准 德标
- Performance level 10.9, 8.8, A2-70, A4-70
- surface treatment true color, 环保镀锌, 电镀锌

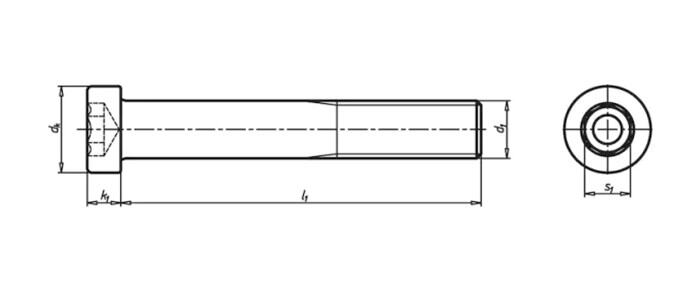

产品图纸
供货范围
| Material | Material | Performance level | surface treatment | 常规供货范围 | RoHS | 其他 |
|---|---|---|---|---|---|---|
| Stainless steel | A2 | 70 | true color | M3-M20 | Yes | |
| Stainless steel | A4 | 70 | true color | M3-M20 | Yes | |
| carbon steel | ST | 8.8 | true color | M3-M24 | ||
| carbon steel | ST | 8.8 | 电镀锌 | M3-M24 | ||
| carbon steel | ST | 8.8 | 环保镀锌 | M3-M24 | Yes | |
| carbon steel | ST | 10.9 | true color | M3-M24 | ||
| carbon steel | ST | 10.9 | 电镀锌 | M5-M12 | ||
| carbon steel | ST | 10.9 | 环保镀锌 | M8-M16 | Yes |
更多材质
| (mm) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| da(max) | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 |
| dk(max) | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
| dk(min) | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 |
| e(min) | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 8.01 | 9.15 | 11.43 | 13.72 | 13.72 | 16 | 16 | 19.44 |
| k(max) | 2 | 2.8 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
| k(min) | 1.86 | 2.66 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 8.78 | 9.78 | 10.73 | 11.73 | 12.73 |
| r(max) | 0.3 | 0.35 | 0.35 | 0.4 | 0.6 | 0.6 | 0.85 | 0.85 | 0.85 | 1.1 | 1.2 | 1.2 | 1.2 |
| t(max) | 1.62 | 2.42 | 2.82 | 3.12 | 3.95 | 4.65 | 5.15 | 5.45 | 5.65 | 6.68 | 7.68 | 8.18 | 8.18 |
| t(min) | 1.38 | 2.18 | 2.58 | 2.88 | 3.65 | 4.35 | 4.85 | 5.15 | 5.35 | 6.32 | 7.32 | 7.82 | 7.82 |
| r(min) | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| s(max) | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 7.175 | 8.175 | 10.175 | 12.212 | 12.212 | 14.212 | 14.212 | 17.23 |
| s(min) | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 7.025 | 8.025 | 10.025 | 12.032 | 12.032 | 14.032 | 14.032 | 17.05 |
